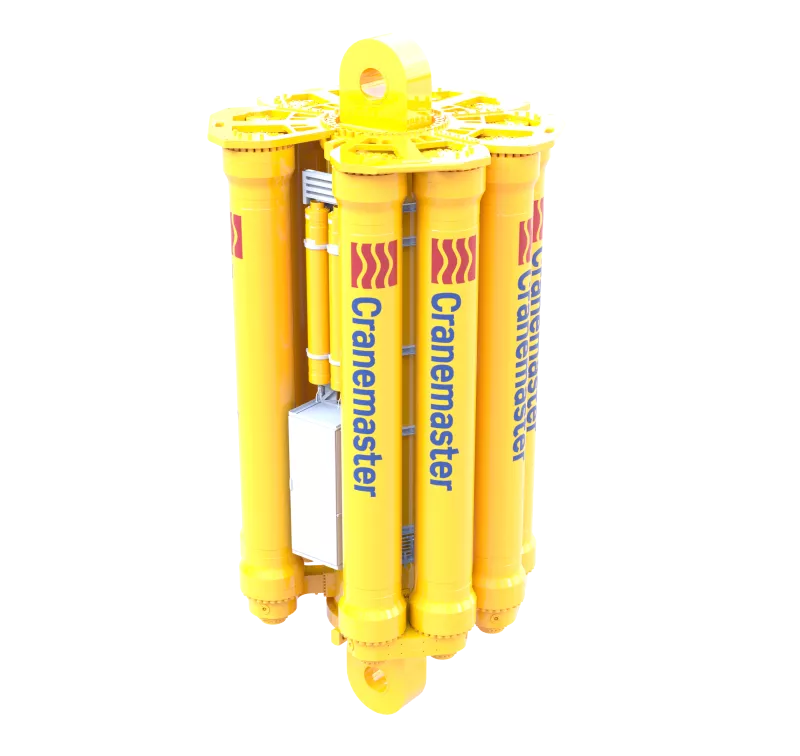

Cranemaster

CM3-3000T-5500-A

The Cranemaster 3000T-5500-A absorbs energy of the falling hammer and reduces DAF to a manageable level in OW Installations at more challenging areas.

Delivery information / how to get it
  • Robust configuration

  • Flexible maintenance

  • Spare parts availability

Technical specifications
Safe Working Load (SWL) 3000 T
Dynamic load capacity 3500 T
Useful load range 25t - 2500t
Maximum stroke 5500 mm
Temperature range -20 to 60 ยฐC
Weight unit (excl shake) In air: 195 000 kg
Weight shackles (one) Heavy duty - 880 kg Wide body - 1 350 kg
Pressure media Glycol based hydraulic fluid, Nitrogen gas class 2.6
Surface treatment Coated for offshore/subsea use and tough environmement
Applications
